5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
5000 litre Demountable or Chassis mounted tank
(Click to see larger image and other views)
SKU: 123052

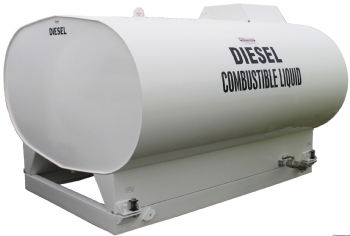

5000 litre diesel tank for direct-to-chassis mounting or vailable as a demountable.
Email sales@fuelequipment.com for a quote on this product
Download brochure here
Built in accordance with:
AS2809-1 for diesel fuel only
Product Details



5000 litre tank suitable for diesel transport - suitable for direct-to-chassis mounting or tabletop mounting with separate sub-frame.
This tank is supplied with spring-loaded mounting brackets which must be used otherwise warranty is void.
Standardfittings include:
Pressure & Vacuum vent with rollover shutoff valve.
80mm combination fill & dip tube with lockable cap
Calibrated dipstick of 20x20x3mm black anodised aluminium with replaceable wear plug.
Rollover coaming with dual drain points.
"Combustible Fluid" and disel signs
50mm bottom outlet with ball valve, Kamlok & chained cap (see options)
4 x spring-loaded mounting brackets
Painted white 2 part epoxy enamel - white
When ordered as a demountable, a separate sub-frame is supplied which can be attached to a flat deck. The tank is mounted to this frame via 4 x spring-loaded brackets.
When ordered as a chassis mount, the vehicle mounted half of the spring-loaded bracket is supplied separately to be bolted to the vehicle chassis rails.
This tank is suitable for diesel only - if you require a tank that is compliant to AS2809 for use on a DG Approved vehicle for transport of Class 3 Flammable liquids (ie ULP, Aviation fuels, Kerosene) please call us on 1800-025 869 or email details to sales@fuelequipment.com
